Discontinued product

AS3000

Engine Controller

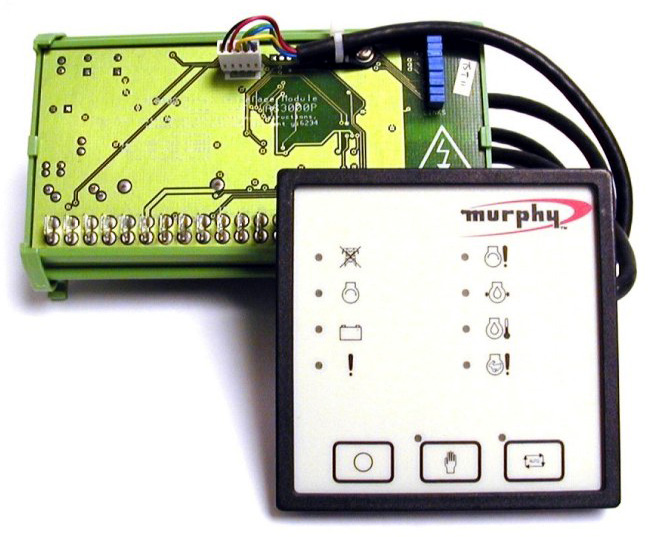

AS3000 engine controller - click to enlarge

The AS3000 comes in two parts - a front facia, IP65/NEMA4 rated AS3000U (user interface) module, connected by a single lead to a DIN rail AS3000P (panel interface) module. This unique two part design can reduce or eliminate wiring up to the panel facia.

Features:-

  • Operator control by front facia keys: Off / Manual / Auto
  • Selectable operating options via 9 circuit board links
  • Fault monitoring and indication/warning:
    - automatic shutdowns: low oil pressure, high engine temperature,
       auxiliary (plant fail), overspeed, start fail (overcrank)
    - warning only: charge fail
  • AS3000U is 92 x 92mm (DIN) front facia mounted, available with International symbols or US English text.
  • Automatic speed calibration, using magnetic pickup or generator AC signals.
  • Generator Hz meter output, for use with generator AC speed sensing

Product literature:-

For full technical support or application advice, contact our engineers
