From engine manufacturers to OEM equipment packagers, Murphy customers worldwide rely on our dependable components, panels and wiring systems for the monitoring, control and protection of their stationary and trailer-mounted engine applications.

If you are in the pumping, power generation or hire-fleet business, or manufacture any industrial engine-driven equipment, Murphy has the right solutions for maximum engine control, monitoring and protection.

Murphy industrial products are designed to help our customers manage the new technology required to meet ever-changing environmental emissions regulations for diesel and spark ignited engines.

We’ve led the way helping our customers meet these changing requirements in instrumentation with our J1939 MurphyLink® system, which provides operators with access to the information available with ECU-based, CAN J1939 engines. Now our latest PowerView® displays and PowerCore® controllers go a step further, with an increased focus on the operator interface, and flexibility for your application. Most of these devices feature best-in-class environmental protection, for durable use inside or out, time and time again.

Murphy also continues to provide traditional products like gauges, sensors/switches, controllers and panels for use on non-ECU 'mechanical' engines. Many products work with old and new engine types, standardizing the operator interface for mixed and transitioning equipment fleets.

Our segments in this market include:

• Engine and power unit manufacturers
• Pumps: industrial, dewatering and fire pumps >
• Pumps: irrigation >
• Genset >
• Lighting towers
• Air compression
• Chippers & shredders
• Crushers & screeners

Click on the links below for stationary equipment product data, or contact our engineers for application advice.

Controls and displays for ECU-based/CAN-J1939 engines:

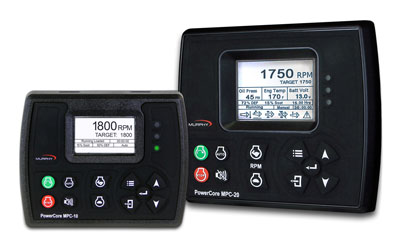

	MPC-10 and MPC-20 controllers. Works with both 'electronic' (ECU/CAN J1939) and 'mechanical' (non-ECU) engines and pumps

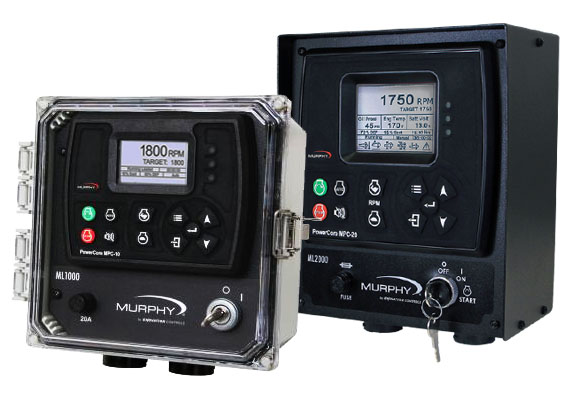

	TEC-10, ML1000 and ML2000. Full control panels based on the MPC series controllers above. Available with wiring harness options for many standard engines.
	PowerView® and MurphyLink® displays and gauges for CAN-based engines, vehicles and systems
	CANstart™ - manual or auto/manual start/stop engine controls with automatic fault shutdown
	CASCADE CD101 - manual or auto start/stop engine controls with automatic fault shutdown
	Control Panels - full panel & wire harness solutions for manual or automatic equipment control
Input/output modules: for interfacing electronic engine, ECU or CAN devices with analogue/switch input and output signals.
	IX3212 PDM - 32 channel, high-power input/output and power distribution module, fully integrated with PowerView displays and PowerVision Configuration Studio®. For CAN integration of auxiliary actuators, motors/pumps/fans, sensors and more.
	XM500 - CAN/I/O module, max 11 inputs/2 outputs, customised to OEM requirements
	CANdrive™ - Reads CAN J1939 data, then drives standard electric gauges and tachometer. Optional fault indication. May be used to integrate ECU-based engines into existing control systems, or to provide new, economical intrument solutions.
	MeCAN™ - Converts analogue pressure, temperature and speed signals into CAN J1939 data. Intergrates older engines with the latest CAN-based displays and controls.
	SenderCAN® - CAN/I/O module, max 4 inputs/2 outputs, customised to OEM requirements
Battery Chargers: Advanced battery conditioning for fixed equipment with mains AC connection:
	Sentinel 300P - advanced programmable switch-mode chargers, 10A @ 12/24V
	Sentinel 150P - programmable switch mode chargers, 5A @ 12/24V
	Sentinel (UL)150- compact switch mode chargers, UL-approved options, 5/10A output
Gauges: - For CAN J1939 engines & equipment:
	PVCAN series - Premium PowerView analogue gauges, displays J1939 engine data by direct connection to the CAN network. IP68 sealing, front and back, available with a range of parameter and bezel options.
	PVA series - Premium PowerView analogue gauges and audible alarm, displays J1939 engine data via RS485 connection to PowerView displays. IP68 sealing, front and back.
	PVM series - Streamlined PowerView analogue gauges, displays J1939 engine data via RS485 connection to PowerView displays.
- For mechanical (non-ECU) engines:
	EG21 and EGS21 series - 2" electric gauge and Swichgage®, environmentally sealed, driven by resistive senders (including single senders for driving two gauges, engine-room and wheelhouse).
	Tachometers - magnetic pickup pickup or alternator driven, analogue or digital readout, with optional hours run meters and limit switches.
	Mechanical Gauge & Swichgage® - the original rugged and accurate instruments for measuring pressure & temperature
Fluid level
	LM500(TF) - automatic oil level maintainer with sightglass and low level switch
	EL150K1 - low level Swichgage® for water, oil or fuel
	L129 - combination high/low fluid level Swichgage®.
Controllers and actuators, non-ECU 'mechanical' engines
	Keystart - manual start/stop controller with automatic fault protection
	CASCADE CD101 - manual or auto start/stop engine controls with automatic fault shutdown
	Magnetic switches/Tattletales - engine control/shutdown.
	RP23xx series - push/pull fuel control solenoids, 12 or 24VDC, 1" or 1.5" stroke.
	RP75 - fuel rack puller.
	SV series - solenoid operated fuel valves.
	AT03069 - engine throttle controller.
	CO3 - automatic clutch operator.

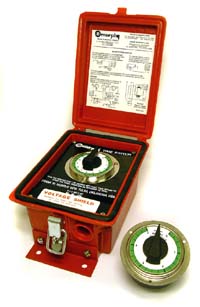

	5T, 15T, 12T, 24T - engine run and fault-override-on-start timers, panel mounted or with lockable weatherproof case.
Fittings and accessories:
	Murphy offer a range of component spares, fitting, adaptors and hose connections for our irrigation control products. Please contact your local distributor for further information.
