Software

Many Murphy products offer flexible OEM or user configuration and customization by use of our purpose-designed software tools. Some of our software is available to registered users only, on a paid-for basis; other configuration tools are provided free-of-charge, via the links below, for use with Murphy equipment as specified. Note: download and use of this software indicates that you accept our Software Licence Agreement.

Please click below on the software you require:









For information and download of software tools for the following Murphy by Enovation Controls products, please visit www.murphybyenovationcontrols.com/software:

  • PowerVision Configuration Studio™, for PowerView® displays. See also http://forum.fwmurphy.com
  • PowerVision for Controllers, for MPC-20, MPC-10 and TEC-10 controllers. See also http://forum.fwmurphy.com
  • Sentinel Interface Suite, for Sentinel 300P & 150P battery chargers.

To download software tools for the following FW Murphy Production Controls products, please visit www.fwmurphy.com/software:

  • Centurion family controls
  • Compressor controls: Millenium MC series, Centurion C3, TDXM, TTD, S1501
  • VRU Pro vapour recovery unit controller
  • Emission Controls (e.g. ex-Compliance Controls equipment).

To download software tools for the following discontinued Murphy (ex-Modex Automation) Autostart engine/generator controllers, click on the links below:

software model description
AS7CN PC (Windows 98) software for AS731 / AS732 communication (DISCONTINUED PRODUCT)
AS7CK PC (DOS) software for AS7xx (705, 710, 720 and 730) communication (DISCONTINUED PRODUCT)
AS7CH PC (DOS) software for AS711 communication (DISCONTINUED PRODUCT)

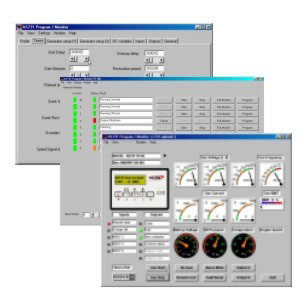

Model AS7CN
PC communication software for Autostart AS731 and AS732 (DISCONTINUED PRODUCTS)

Stock number: n/a
Model reference: AS7CN
Version: 2.2.0
Build date: 2nd October 2003
Release date: 3rd October 2003
File size: 3.4Mb
System requirements:

See document mi6131 for details.
 1) PC or laptop with D-type COM port connector (or USB/COM interface configurable to COM1/2/3/4/5/6).
2) Murphy interface lead for serial or modem communication.
3) Operating system: Microsoft Windows 95, 98, 98SE, ME and 2000 (English versions).
Special download instructions: None. (Click link below, then select 'save to disk' and a
file location of your choice.)
Special install instructions: If an earlier version of AS7CN is already installed,
click here for further instructions
AS731 compatibility issues:

1) Software AS7CN V2.2.0 will communicate with all firmware versions of the AS731 and AS732, except AS732 V2.0.
2) AS731/AS732 firmware V2.1.0 or earlier has less features than those supported in AS7CN V2.2.0.

For further details of compatibility,
contact our engineers.

Additional information:
- AS7CN software installation & operating instructions (PDF, 808 Kb)
- AS731 / AS732 installation: programme options checklist (PDF, 264Kb)
- AS731 general information and links
- AS732 general information and links

Download software as .exe file, as7cn_v2_2_0.exe
Download software as .zip file, as7cn_v2_2_0.zip

Model AS7CK
PC communication software for
Autostart AS705S, AS710S, AS720S and AS730S (DISCONTINUED PRODUCTS)

Stock number:
76.70.0203
Model reference:
AS7CK
Version:
 1.07
Build/release date:
2nd January 2001
File size:
737 Kb
System requirements:

See document mi5266 for details.
 1) PC or laptop with D-type COM port connector.
2) Murphy interface lead for serial or modem communication.
3) Operating system: MSDOS 5.0, Microsoft Windows 3.1, 3.11,'95 and '98. Note: this software is not compatible with Windows 2000/XP/Vista/7/8.

Special download instructions:
None. (Click link below, then select 'save to disk' and a
file location of your choice.)

For full software installation and operating instructions (in Adobe Acrobat .PDF format), click here. For AS7xx programming information, click here. Further information and product literature is also available on our AS7xx page.

Download as .EXE file, as7ck_v1_07.exe
Download as ZIP file, as7ck_v1_07.zip

PC communication software for
(discontinued) Autostart AS711 (DISCONTINUED PRODUCT)

Stock number:
76.70.0118
Model reference:
AS7CH
Version:
 1.01
Release date:
21st March 2000
File size:
565 Kb
System requirements:

1) PC or laptop with D-type COM port connector.
2) Murphy interface lead for serial or modem communication.
3) Operating system: MSDOS 5.0, Microsoft Windows 3.1, 3.11,'95 and '98. Note: this software is not compatible with Windows 2000/XP/Vista/7/8.

Special download instructions:
None. (Click link below, then select 'save to disk' and a file location of your choice.)

Click here to download as711.exe
