Markets: Power Controls

Stationary Equipment: Power Generation

Murphy offer rugged and flexible controls for all levels of power generation systems. From our simple Keystart / CANstart™ modules and gauge systems, through to our advanced battery chargers and displays, Murphy have proven and reliable solutions for your genset application.

For further information about our instruments and controls for gensets, click on the product links below, or contact our engineers with your application requirements.

Murphy genset controls

Power Controls brochure >

Genset Controls:
Keystart engine controller Keystart - manual start/stop controller with automatic fault protection, for mechanical (non-ECU/CAN) engines
CANstart engine/genset manual start/stop controller CANstart™ - manual or auto/manual start/stop engine controls with automatic fault shutdown, for ECU/CAN-based engines
ASM150 engine controller ASM150 - basic Autostart controller for non-ECU engines
CASCADE CD101 engine controller CASCADE CD101 - manual or auto start/stop engine controls with automatic fault shutdown
Autostart 700 generator controller Autostart 700 - generator controller

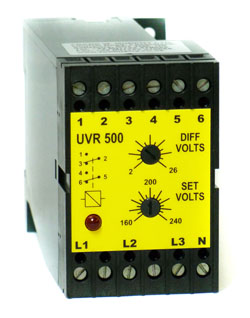

UVR500 AC voltage monitoring relay UVR500 - AC voltage monitoring relay, 160 -240 VAC ph-N


Battery Chargers:
 Advanced battery conditioning for standby gensets with mains AC connection:

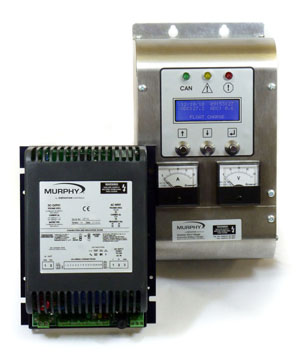

Sentinel 300P programmable switch mode battery charger Sentinel 300P - advanced programmable switch-mode chargers, 10A @ 12/24V

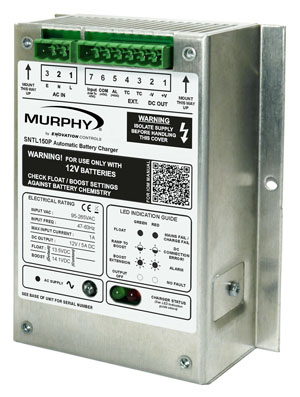

Sentinel 150P programmable switch mode battery charger Sentinel 150P - programmable switch mode chargers, 5A @ 12/24V
PVM gauges for PowerView displays Sentinel (UL)150- compact switch mode chargers, UL-approved options, 5/10A output

CAN-based displays & systems:

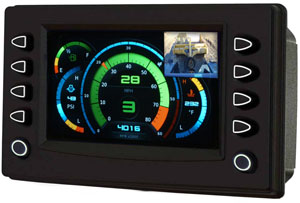

Powerview displays and gauges PowerView® and MurphyLink® displays and gauges for CAN-based engines, vehicles and systems

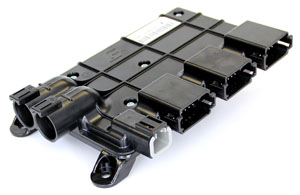

IX32 input/output and power distribution module IX3212 PDM - 32 channel, high-power input/output and power distribution module, fully integrated with PowerView displays and PowerVision Configuration Studio®. For CAN integration of auxiliary actuators, motors/pumps/fans, sensors and more.

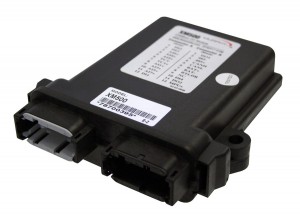

XM500 CAN J1939, input, output module XM500 - CAN/I/O module, max 11 inputs/2 outputs, customised to OEM requirements

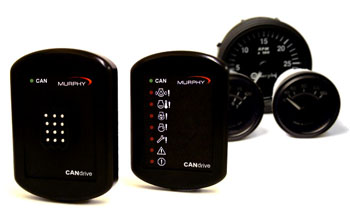

CANdrive J1939 to electric gauge interface CANdrive™ - Reads CAN J1939 data, then drives standard electric gauges and tachometer. Optional fault indication. May be used to integrate ECU-based engines into existing control systems, or to provide new, economical intrument solutions.
MeCAN MEC300 J1939 input output interface MeCAN™ - Converts analogue pressure, temperature and speed signals into CAN J1939 data. Intergrates older engines with the latest CAN-based displays and controls.
SenderCAN resistive sender or switch input to J1939 CANbus converter SenderCAN® - CAN/I/O module, max 4 inputs/2 outputs, customised to OEM requirements



Gauges:

 - For CAN J1939 engines & equipment:
PVCAN gauges for direct J1939 connection PVCAN series - Premium PowerView analogue gauges, displays J1939 engine data by direct connection to the CAN network. IP68 sealing, front and back, available with a range of parameter and bezel options.
PVA Premium gauges for PowerView displays PVA series - Premium PowerView analogue gauges and audible alarm, displays J1939 engine data via RS485 connection to PowerView displays. IP68 sealing, front and back.
PVM gauges for PowerView displays PVM series - Streamlined PowerView analogue gauges, displays J1939 engine data via RS485 connection to PowerView displays.


- For mechanical (non-ECU) engines:
EG21 / EGS21 series electric gauge for marine applications EG21 and EGS21 series - 2" electric gauge and Swichgage®, environmentally sealed, driven by resistive senders (including single senders for driving two gauges, engine-room and wheelhouse).
AT series analogue tachometers Tachometers - magnetic pickup pickup or alternator driven, analogue or digital readout, with optional hours run meters and limit switches.
Mechanical SwichgageAT series analogue tachometers Mechanical Gauge & Swichgage® - the original rugged and accurate instruments for measuring pressure & temperature



Fluid level

LM500(TF) oil level maintainer LM500(TF) - automatic oil level maintainer with sightglass and low level switch
EL150K1 oil level switch EL150K1 - low level Swichgage® for water, oil or fuel

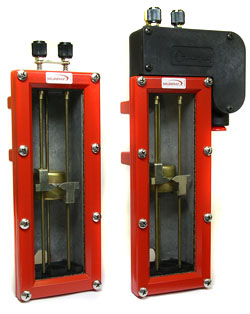

L129 oil level alarm L129 - combination high/low fluid level Swichgage®.




Controls and actuators, non-ECU 'mechanical' engines
518APH magnetic switch Magnetic switches/Tattletales - engine control/shutdown.
RP2300 series push/pull solenoid RP23xx series - push/pull fuel control solenoids, 12 or 24VDC, 1" or 1.5" stroke.
RP75 fuel rack puller RP75 - fuel rack puller.
SV solenoid operated fuel valve SV series - solenoid operated fuel valves.



Sensors, fittings and accessories:
Fault switches, resistive senders and transmitters
MP series - magnetic pickup speed sensors
Vibration switches
Murphy offer a range of component spares, fitting, adaptors and hose connections for our mechanical instruments.
