Our heavy-duty mechanical Murphygage® products combine accurate and reliable indication of engine coolant, air and oil temperatures. Swichgage® models also provide output contacts for fault alarm/shutdown protection. Features include:

• Rugged industrial rated diaphragm movement
• Plated steel or polcarbonate case options
• Polycarbonate lens
• Bright or black stainless steel bezel options
• Tough PVC-armored capillary

The products are available in 2, 2.5 and 4.5 inch (51, 64, and 114 mm) gauge diameters. The 4.5-inch version also features a dial mechanical/analogue readout and adjustable high and low limit contacts.

Our “A-series” (A20T and A25T) temperature Swichgages include environmental sealing to keep out damaging condensation, with two wire (insulated return) switch circuits for marine or mobile equipment use.

Also included here are temperature fault switches, exhaust pyrometers, temperature scanners, thermocouple sensors and thermowells. For ECU/CAN/J1939 engine temperature gauges, click here.

Mechanical temperature Swichgage®/MurphyGage®:

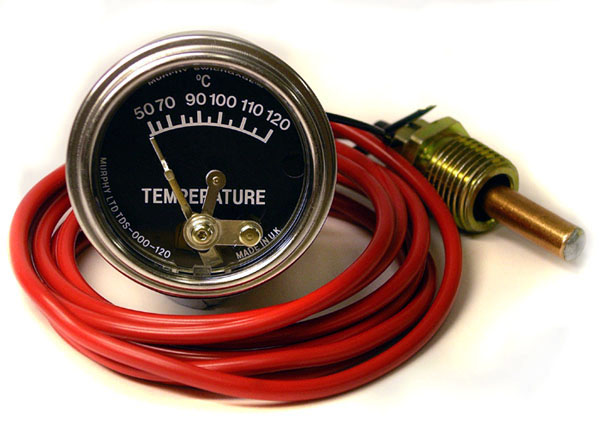

20T/25T series
2 and 2.5 inch (51 and 64mm) dial temperature Swichgage®. Metal case, ground return, optional snap-switch.

A20T/A25T series
2 and 2.5 inch (51 and 64mm) dial temperature Swichgage®. Polycarbonate, sealed case, insulated return, optional snap-switch.

20BTG
2 inch (51mm) 'B-series' temperature MurphyGage® instruments. Metal case, no switch contacts.

Exhaust pyrometers
Single and dual port pyrometers, thermocouple driven

SPL & 45TE (info from FW Murphy Production Controls at www.fwmurphy.com
4.5 inch (114mm) temperature Swichgage®.

SDB (info from FW Murphy Production Controls at www.fwmurphy.com)
3.5 inch (89mm) dial bi-metallic temperature Swichgage®.

Digital temperature scanners & Swichgage®:

The following info from FW Murphy Production Controls at www.fwmurphy.com

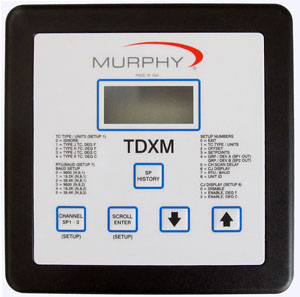

TDXM
Temperature scanner/pyrometer, up to 24 channels, CSA hazardous area classified

TDX6
Temperature scanner/pyrometer, 6 channels, CSA hazardous area classified

MDTM89
Digital temperature Swichgage®

Temperature switches and sensors:

EST, ES2T, ESDT
Resistive temperature sensors for EG(S) series electric gauges

ESTS, ESPS
Temperature & pressure sensors, dual output (resistive sender and fault switch)

76.TS
Direct mount temperature switch

TSB
Direct mount temperature switch

TC, RTD, RTDT series
Thermocouples, resistance probes, transmitters and thermowells

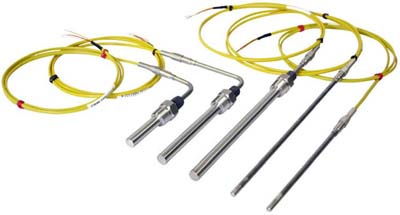

Thermocouples
1/4 inch thermocouples for pyrometers, scanners and controllers

Bulbs & Capillaries
For mechanical Swichgage® & MurphyGage® instruments

Thermowells
For temperature bulbs

Model 12
Air temperature sensor

See also:

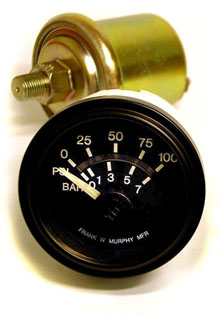

Electric gauge & Swichgage®
