Fire Pump Control panels

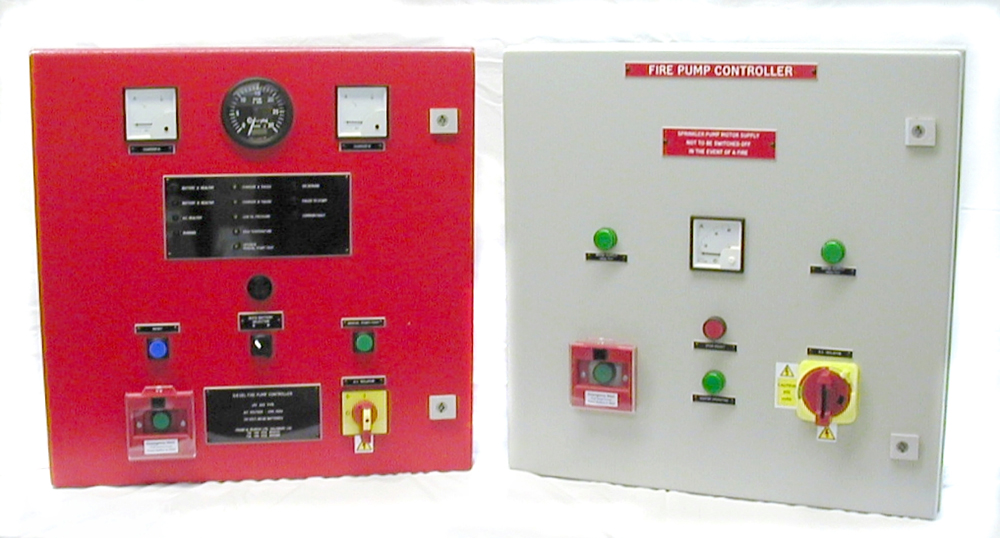

The Murphy LPC control panel range is designed for use in both diesel engine and electric motor driven fire pump applications. The panels may be used in conjunction with suitable engine or motor equipment to meet the requirements
of the Loss Prevention Council and BS5306 specifications. Note: these panels are NOT suitable for operation with engines built to LPCB rules (January 2004).

The panels are a direct derivation of our successful EEC family of automatic engine controls, with a proven track record of quality and reliability. Independent automatic and emergency manual control is provided. All panels are designed to give the utmost reliability in pump starting and operator control.

Features:
Diesel versions:

• Autostart initiated from remote contact or sprinkler pressure switch
• Dual battery starting controls, operator selectable A or B
• Dual battery chargers and charge ammeters
• Manual test start, emergency start and reset controls
• Engine/system fault warning indicators
• Common fault and audible alarm outputs
• IP55 lockable enclosure with mounting lugs

Electric versions:

• For 415VAC 3 phase and neutral electric motors
• Variants for motors from 11kW through to 160kW
• Autostart initiated from remote contact
• Star/delta motor starting, 5 sec timer (adjustble)
• Emergency start and reset controls
• IP55 lockable enclosure with mounting lugs

Archive Literature:

For more product details, related literature (in pdf format) can be viewed here:

• Sales Bulletin (ss5903)
