Engine Panels - Mechanical (non-ECU) Engines
Diagnostic Centre Shutdown Panels
General Purpose Applications

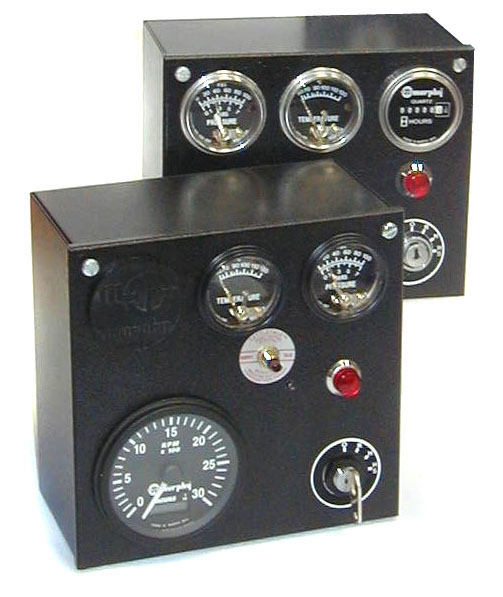

The Murphy Diagnostic Centre range provides operator
controlled starting and stopping of an engine, with automatic shutdown protection in the event of a fault.
Several standard control panels are available, offering various levels of engine instrumentation and fault protection. All panels feature a four position keyswith (OFF-RUNHEAT-START), a charge alternator excitation and warning lamp, and a magnetic switch shutdown device for the control of an energised-to-run fuel device (not supplied).
All Diagnostic Centres are housed in a black painted, robust sheet steel enclosure, with shockmounts provided as standard. Circuit diagrams are supplied with each panel.
Literature:
For more information about this product, you can view the related literature here:
- Sales Bulletin (ss6192)
