Control panels for Perkins & Caterpillar
ECU/CAN-based engines, stationary applications

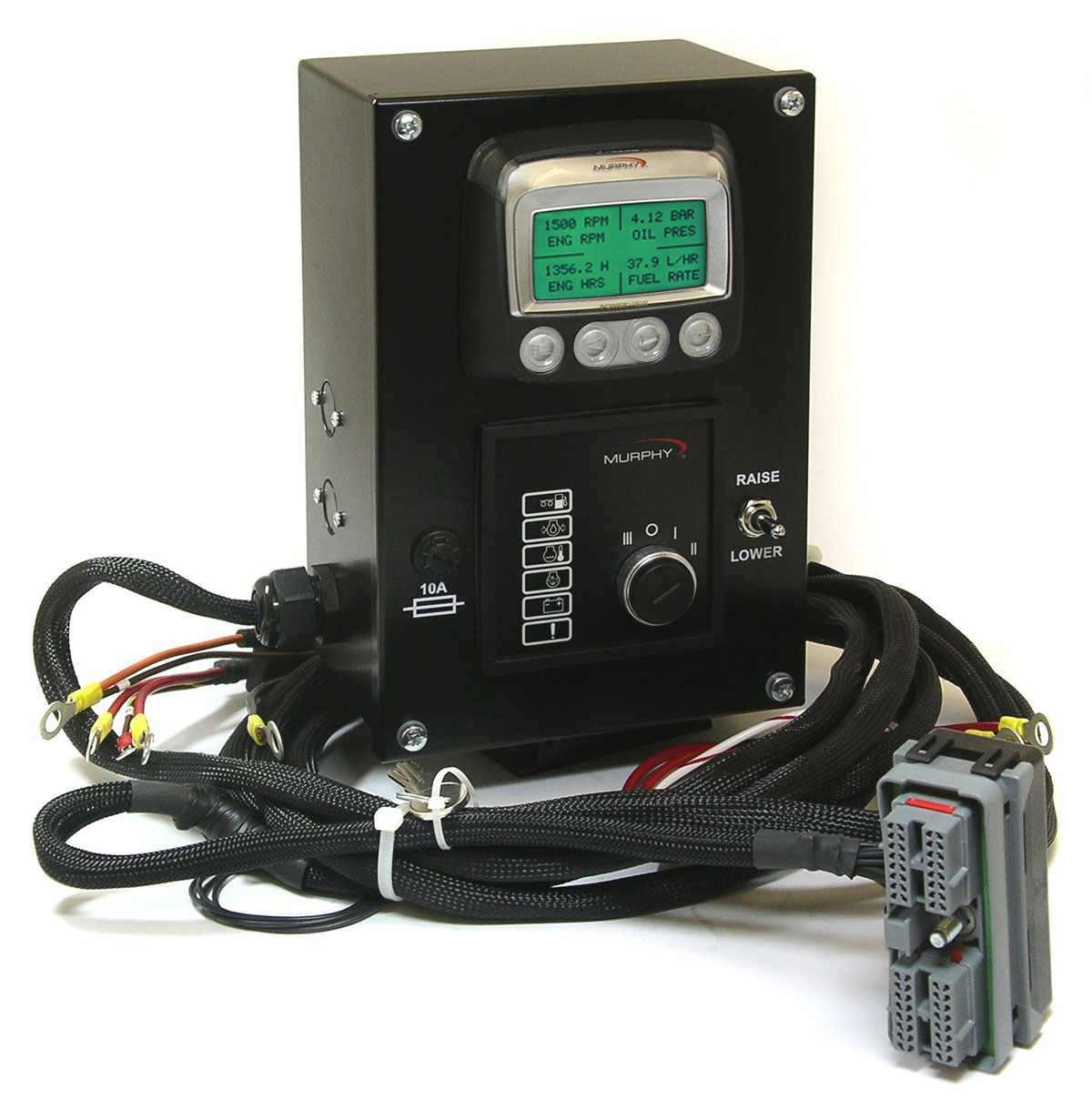

These Murphy panels were designed for plug-and-go connection with Perkins and Caterpillar ECU/CAN-based engines, used in stationary applications such as pumps, shredders, crushers, etc. All panels had integral wiring harnesses with connectors for simple, direct mating to Perkins and Caterpillar engines.

Models B6502, B6503, B6524, B6525 are compatible with Perkins 1104D/1106D and Caterpillar C4.4/C6.6 engines. Variants were made for 12 or 24V operation, with optional auto start/stop control for unattended applications (e.g. pumping triggered by high/low float level switches).

Features included:

• PowerView PV101 display of ECU (J1939) transmitted engine data and fault diagnostics
• CANstart™ engine control and LED fault indication
• TSC1 speed control via raise/lower toggle switch
• Black painted, metal enclosure

Literature:

• B6502/B6503/B6524/B6525 sales bulletin (ss6459)

Further information:

• PowerView PV101 J1939 display module
• CANstart J1939 control module
• B6468 panel for Caterpillar and Perkins non-ECU engines
