Engine Controls

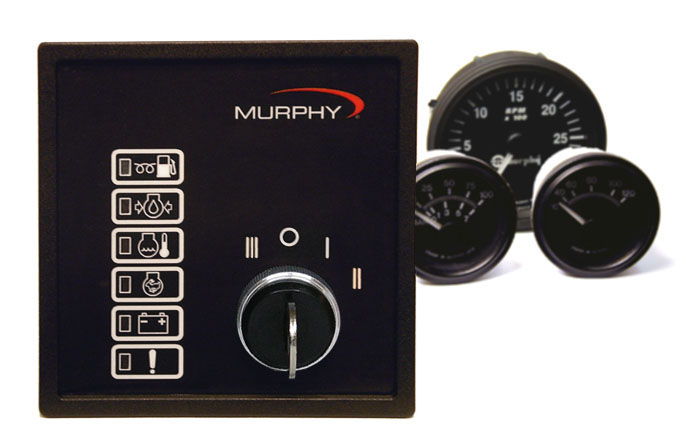

CANstart™
CANstart™ provides start/stop control, fault indication/shutdown and gauge driver outputs for ECU-based (SAE J1939-enabled) engines. These compact modules can be used for the control of pumps, generators and other industrial engine applications:
- Compatible with ECU-controlled, J1939 CANbus engines
- Off-Run-Start keyswitch operation, optional auto start/stop models
- LED indication of ECU-transmitted engine faults
- Outputs for driving electric panel gauges (tacho, oil pressure & coolant temperature), based on ECU-transmitted engine data
- Overspeed and auxiliary fault indication and shutdown protection
- Charge alternator excitation and charge fail warning LED
- Front-of-panel case, 92 x 92 mm DIN cut-out
Further information:
Model CST9630 series, manual start/stop control:
- CANstart™ 9630 series sales bulletin (0810330)
- CANstart™ 9630 series installation instructions (00-02-0664)
Model CST9640 series, manual and auto start/stop control:
- EG(S)21 series electric gauges
- AT series tachometers
- J1939 controls & instruments
- Keystart controls for non-ECU engines/gensets
- CANdrive™ J1939 to electric gauge interface
- FuelCAN™ fuel level sender to J1939 converter
- SenderCAN® sender /switch to J1939 converter
For further technical information or application advice, send us an email, or call our engineers.
