The Keystart range provides manual start/stop and automatic fault protection for generators, pumps and other engine-driven applications:

• Simple, compact design
• 92 x 92 mm or 68 x 68mm
  DIN panel cut-out
• Security keyswitch
• Fuel, starter and timed preheat control outputs
• LED and icon indication of preheat, fuel on and fault conditions
• Overspeed shutdown option, with link-selectable input source
  (magnetic pickup or AC generator)

May 2008: New Keystart 9620 series launched

The new 9620 series supersedes the 9610 series, with a more compact case, easier panel mounting and quick-connect terminals, plus a choice of keyswitch options.

Base Keystart models are:

	no overspeed	AC/MPU overspeed

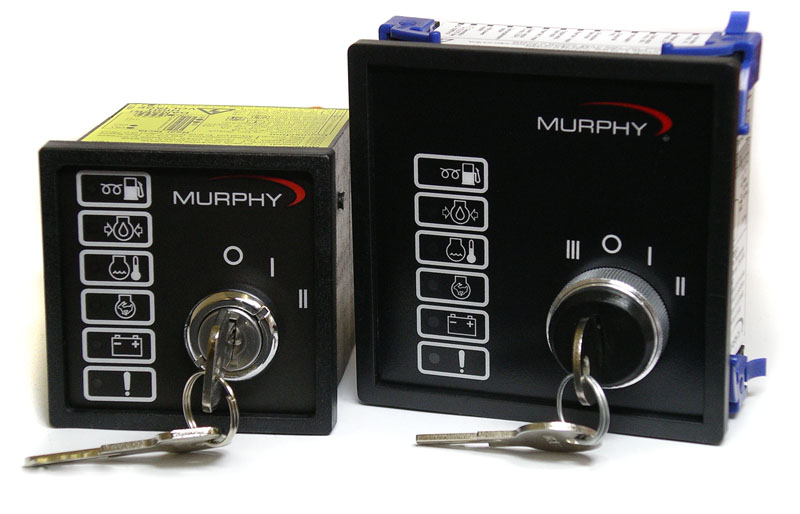

NEW! DIN 96mm case	KEY9620	KEY9621
DIN 72mm case	KEY7210	KEY7211

---

Keystart 9000, 9600, 9610, 9700, 7201 series

The following Keystarts have been superseded by the models above, but some of the older design units may remain in stock – please contact our sales engineers for details of stock availability or nearest equivalent units. For technical information on these older units, please visit our PDF literature index.

Keystart series	Models
7201	7201
9000	9000(A)(H), 9001(A)(H), 9002(A)(H)
9600	9600(A)(H), 9601(A)(H), 9602(A)(H)
9610	9610, 9611
9650	9650(H), 9651(H), 9652(H)
9700	9700(H), 9701(H), 9702(H)
